Ossila Four-Point Probe System

The Ossila Four-Point Probe system is a compact, single-unit probing device designed for measuring sheet resistance, resistivity and conductivity. The probe tips are spring-loaded to avoid scratching the surface of samples. Software and drivers are provided on a USB stick. The software requires a few simple inputs and calculates the sheet resistance, and optionally, conductivity and resistivity of a material with a known thickness.

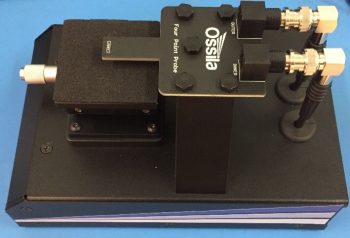

photo of Ossila probe

Specifications​

  • < ±4% Measurement Accuracy
  • ±100 µV to ±10 V and ±1 µA to ±150 mA voltage and current ranges respectively
  • 3 mΩ/square to 10 MΩ/square sheet resistance range
  • Maximum 10 mm sample thickness

Applications

  • Material Characterization
  • Thin-Film Devices

What’s Included

  • Ossila Four-Point Probe System with built-in SMU
  • ITO Sample
  • User Manual
  • USB Stick with Drivers and Software
  • USB-B Cable

Resources​

Ossila User Manual

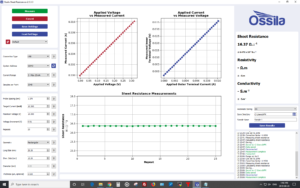

Results from Testing the Provided ITO Sample
Using Osilla’s Software

Rent this equipment

Start an Application
