Applications RF-test station for 5G, automotive radar Specifications Stereo Zoom Microscope 100x magnification, 100mmx100mm movement Handles 6” or 150mm wafers down to fragments and packages Fine X,Y movement is 25mm Fine Z movement is 20mm Chuck theta is 360 rotation, fine theta ~10 degrees Notes This instrument does not come with a planarization substrate and […]
Semiprobe LA-150 Probe Station Read More »
The mainframe comes with module 86118A (Dual 70GHz RF Heads) and module 54754A (for TDR/TDT measurements). Module 86118A (70GHz Sampling Oscillscope with Dual RF Heads) Module, Keysight M54754A (TDR/TDT): 86100D Mainframe Specifications Front panel clock trigger Software upgrades for advanced waveform study, including: 86100D-200 for Timing Jitter Analysis; 86100D-201 for Waveform Analysis using extended memory;
Features Multiple, independent channels per radio and multiple radios per Access Point that deliver exceptional throughput advantages over convention Access Points 162 Mbps per radio – basic (3-channel) configuration provides over 50x increased throughput performance versus single-channel access points Uses industry-leading, proprietary data converter technology Roving Monitor that acts as a sniffer looking for rogue
Mini-Circuits Wideband Amplifier 0.1 to 18 GHz Read More »
Features Multiple, independent channels per radio and multiple radios per Access Point that deliver exceptional throughput advantages over convention Access Points 162 Mbps per radio – basic (3-channel) configuration provides over 50x increased throughput performance versus single-channel access points Uses industry-leading, proprietary data converter technology Roving Monitor that acts as a sniffer looking for rogue
Edgewater Wireless EAP3031 Spectrum Slicing Access Point Read More »

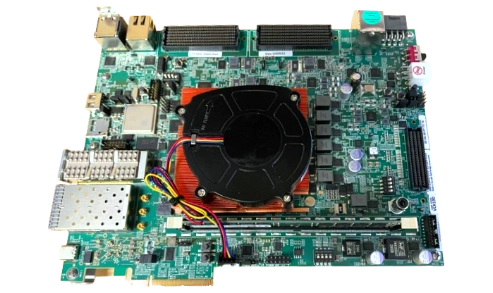

What’s Included Xilinx VCK190 Evaluation Board QSPI Book Module Pmod Module 2x Ethernet Cables 2x Micro SD cards 180W (12V) power supply Resources Quick Start Guide, Targeted Reference Designs, PetaLinux Board Support Package and more are available at the Xilinx VCK190 Product Webpage System Controller Image & Beam Tool Applications The VCK190 Evaluation Kit is
Xilinx Versal AI Core Series VCK190 Evaluation Kit Read More »

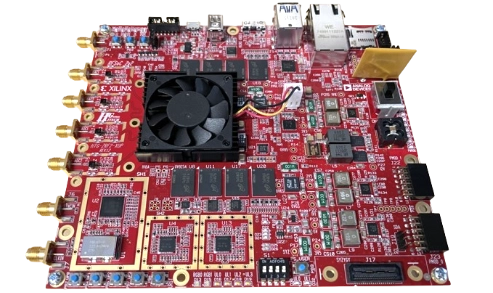

What’s Included Xilinx ZYNQ Ultrascale RFSoC Platgform (RFSoC2x2) 12V 72W power supply unit USB 3.0 A to Micro B Cable 2 RF cables with SMA connectors 16 GB MicroSD card with pre-loaded Linux and PYNQ image Resources Xilinx RFSoC2x2 Kit product page For documentation and reference designs, visit the RFSoC PYNQ product webpage A video
Xilinx ZYNQ Ultrascale RFSoC Platform (RFSoC2x2) Read More »
AI-oriented heterogeneous computing architecture provides hierarchical APIs to help you quickly build AI applications and services based on the Ascend platform. Features High integration Powered by the Huawei Ascend 310 AI processor, and integrates various peripheral interfaces and the Mind Studio, facilitating access to the development environment and enabling quick development Easy-to-use software environment Mind
Atlas 200 DK AI Developer Kit Read More »
System Overview Sampling at 125 MS/s with a selectable IBW up to 100MHz, the R5500 RTSA performs with excellent dynamic range, phase noise performance and speed. The CMC system is comprised of the R5500 RTSA, test antennas and a laptop containing the thinkRF application & integration software in a portable hard-shell carrying case. Keysight’s 89601C
thinkRF R5500-427 27GHz Real Time Spectrum Analyzer Read More »
The Tektronix DPO77002SX is a single-channel 70 GHz, 200 GS/s oscilloscope for applications such as RF analysis or pulsed laser studies. Using Tek’s ATI (Asynchronous Time Interleaving) architecture, the scope achieves 70 GHz single-channel bandwidth at 200 GS/s (5 ps/Sample). The scope can be configured for two channels at 33 GHz.
Tektronix DPO77002SX 70-GHz Real-Time Oscilloscope Read More »
The Keysight N5247B PNA-X Vector Network Analyzer available from the CMC Equipment Rental Program is a multi-function test system that allows you to perform a wide range of automated measurements on linear and non-linear RF devices such as amplifiers, mixers, and frequency converters. The VNA provides 10MHz to 67GHz measurements on its own, and it now comes with a test controller and test heads to provide E-band testing from 60 to 90GHz using coaxial and waveguide methods.
Keysight N5247B PNA-X Vector Network Analyzer, 10 MHz to 90 GHz Solution, 2 Ports Read More »
The Agilent DSAX91604A is a 16 GHz real time oscilloscope with 4 analog channels. 256-level intensity-grading emphasizes signal anomalies by lightly-shading infrequent waveforms. Agilent DSA oscilloscopes come with 50 Mpts memory and built-in software (EZJIT, EZJIT Plus, EZJIT Complete, and Serial Data Analysis). The three EZJIT software packages provide jitter analysis capabilities and jitter measurement floor of 100 fs. The equipped Infiniiscan option enables triggering on unique events such as zones on multiple channels and non-monotonic edges. Agilent N5449A High-Impedance Adapters are included for probes that require a 1 MΩ interface.
WR90 Waveguide and Calibration Kit Read More »
The Agilent DSAX91604A is a 16 GHz real time oscilloscope with 4 analog channels. 256-level intensity-grading emphasizes signal anomalies by lightly-shading infrequent waveforms. Agilent DSA oscilloscopes come with 50 Mpts memory and built-in software (EZJIT, EZJIT Plus, EZJIT Complete, and Serial Data Analysis). The three EZJIT software packages provide jitter analysis capabilities and jitter measurement floor of 100 fs. The equipped Infiniiscan option enables triggering on unique events such as zones on multiple channels and non-monotonic edges. Agilent N5449A High-Impedance Adapters are included for probes that require a 1 MΩ interface.
Rohde & Schwarz RTO1044 Digital Oscilloscope Read More »
Enabling system architects to explore direct RF sampling with the Xilinx Zynq® UltraScale+™ RFSoC from antenna to digital using tools from MathWorks and industry-leading RF components from Qorvo.
Avnet Zynq Ultrascale+ RFSoC Development Kit Read More »
The Keysight 346B is a general-purpose broadband noise source that eliminates the need for several sources at varying frequencies. Excess noise ratios for each 1 GHz interval from 10 MHz to 18 GHz are printed on the noise source. Low VSWR reduces uncertainty from the reflection of test signals. Useful for noise figure measurements using the Y-factor method.
Agilent ( Hewlett-Packard) 346B Noise Source, 10 MHz to 18 GHz, Nominal ENR 15 dB Read More »
photo of MITEQ Power Amplifier, 1 – 2 GHz.
MITEQ Power Amplifier, 1 – 2 GHz. Read More »
The Ossila Four-Point Probe system is a compact, single-unit probing device designed for measuring sheet resistance, resistivity and conductivity. The probe tips are spring-loaded to avoid scratching the surface of samples. Software and drivers are provided on a USB stick. The software requires a few simple inputs and calculates the sheet resistance, and optionally, conductivity and resistivity of a material with a known thickness.
Ossila Four-Point Probe System Read More »
The Keithley 2400 SourceMeter is designed for applications that rely on both precision sourcing and measuring. The device combines a 20 W, four-quadrant (source and sink) IV source with an IVR digital multimeter. The Keithley 2400 can perform linear, logarithmic, and custom sweeps for single-event or continuous operation. With 1pA current and 100nV voltage measurement resolutions, the Keithley 2400 is well-equipped for basic SMU test applications.
Keithley 2400 SourceMeter Read More »
The Anritsu TOSLKF50A-40 Kit is a compact, lightweight unit with Through, Open, Short, and Load K-type (f) ports for performing network analyzer calibration.
Anritsu TOSLKF50A-40 Calibration Kit 40 GHz Read More »
The Anritsu TOSLKF50A-20 Kit is a compact, lightweight unit with Through, Open, Short, and Load K-type (f) ports for performing network analyzer calibration.
Anritsu TOSLKF50A-20 Calibration Kit 20 GHz Read More »
The Agilent DSAX91604A is a 16 GHz real time oscilloscope with 4 analog channels. 256-level intensity-grading emphasizes signal anomalies by lightly-shading infrequent waveforms. Agilent DSA oscilloscopes come with 50 Mpts memory and built-in software (EZJIT, EZJIT Plus, EZJIT Complete, and Serial Data Analysis). The three EZJIT software packages provide jitter analysis capabilities and jitter measurement floor of 100 fs. The equipped Infiniiscan option enables triggering on unique events such as zones on multiple channels and non-monotonic edges.
Agilent DSAX91604A Infiniium Real-Time Oscilloscope: 16 GHz Read More »
The RF Bay MPA-22-30 is a power amplifier with a 30 dB gain and 30 MHz to 2.2 GHz frequency range. The amplifier requires a single 12 VDC power supply and has SMA connectors.
RF Bay MPA-22-30 RF Power Amplifier Read More »
The SR720 LCR Meter measures major (L, C, R) as well as minor (Q, D, R) parameters of passive components with 0.05 % accuracy. The meter can perform measurements at five fixed test frequencies ranging from 0.1 to 100 kHz and adjustable amplitudes from 0.1 to 1.0 Vrms. The device accepts up to 40 Vdc external biasing if the built-in 2 Vdc is insufficient for a measurement. Included in this rental package is an SR728 BNC adapter for connecting remote fixtures and other equipment. Three binning schemes (pass/fail, overlapping, and sequential) are useful for ensuring that groups of components have the same parameter values that are listed on their specification sheet within a programmable error. Computer control is enabled through an RS-232 or GPIB connection.
Stanford Research SR720 LCR Meter Read More »
CMC Microsystem’s Toptica DL Pro Laser offers 30 to 50 GHz mode-hop free tuning and alignment free operation. The laser is equipped with a Toptica FiberDock for FC/APC connections. A mainframe is included with modules for diode laser control, current control, temperature control, and high-voltage scanning.
Toptica DL Pro 850 Tunable Laser Read More »
The Agilent U2002A Average Power Sense offers power analysis up to 24 GHz and outputs from a USB connection. The U2002A is equipped with internal zeroing, preventing the user from having to power-off the DUT or disconnect the sensor between measurements. Calibration, temperature, and linearity correction data has been pre-entered on an internal EEPROM. Triggering can be derived internally from an RF signal or controlled externally via TTL input. The sensor can be rented alone or, if being used for source power calibration, with one of three Keysight PNA network analyzers also available from CMC’s Equipment Rental Program.
Agilent U2002A USB Average Power Sensor Read More »

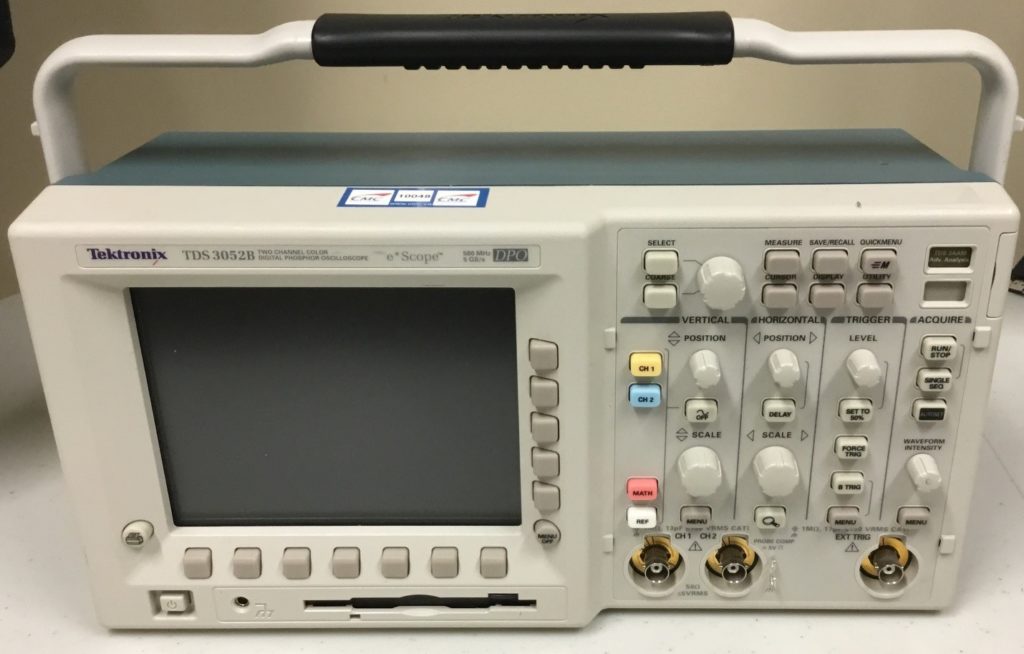

The Tektronix TDS3052B DPO (Digital Phosphor Oscilloscope) has a 5 GS/s sample rate across a 500 MHz bandwidth. The Intensity Grading feature darkens and thickens lines representing signals that have been continuously captured. In addition, the “WaveAlert” feature detects signal anomalies and can notify users by stopping acquisitions, beeping, or saving waveforms. This allows tests to run unmonitored over long periods of time. CMC’s TDS3052B has been equipped with TDS3TRG Advanced Trigger, TDS3FFT FFT, and TDS3AAM Advanced Analysis modules.
Tektronix TDS3052B Digital Phosphor Oscilloscope Read More »
Tektronix’s TriMode Probes can perform differential, single-ended and common mode measurements with a single probe. The P7504 operates over 4 GHz bandwidth and uses a TekConnect interface which is specific to Tektronix DPO/DSA/MSO70000 and TDS6000B/C oscilloscopes. CMC rents 2 Tektronix DPO73304SX 33 GHz Real-Time Oscilloscopes. The P7504 TriMode Probe can be bundled with this oscilloscope if additional probes to the recommended P7633 33 GHz TriMode Probe are required for your testing. Included in the P7504 Probe Kit is a TriMode Accessory Kit with solder tips, solder, wire, adhesive strips, and marker bands.
Tektronix P7504 TriMode Probe Read More »
The SA2500X Probe has 2.5 GHz bandwidth and is system-independent, capable of plugging into any 50Ω-coupled BNC port. The probe tip housing is slim, allowing for multiple simultaneous measurements. This probe is typically loaned with the PXIe-5162 oscilloscope module in the Keysight M9019A PXIe Gen 3 Chassis.
National Instruments SA2500X High Impedance Active Probes Read More »
The NI RF PXI-express system, available from the CMC Test Equipment Pool, is an 18-slot PXI-express chassis with high-speed controller (Intel quad core, 4 G memory and Dual OS), 6.6 GHz RF Vector Signal Generator, 6.6 GHz RF Vector Signal Analyzer, 6.6 GHz dual 4 X 1 MULTIPLEXER, Xilinx Kintex-7-based FlexRIO FPGA module. This system is an integrated, modular instrument with LabVIEW-based simulation/test environment which enables faster RF test and validation setup and experimental results.
National Instruments RF PXI-express System including a 6.6 GHZ VSA Read More »
The Zurich Instruments HF2LI is a dual-input channel lock-in amplifier that meets a wide range of application needs for test and microsystem prototyping. Not only does the instrument offer high performance, it is capable of simultaneously analyzing incoming signals at up to six frequencies, making it applicable to techniques such as microfluidic-based impedance spectroscopy. The unit is used in combination with a standard Windows controller, through a USB 2.0 high-speed host connection. It includes a flexible graphical user interface and programming interfaces.
Zurich Instruments HF2LI Multi-frequency Lock-in Amplifier Read More »
The RSA507A is a ruggedized portable real-time spectrum analyzer that comes with analysis software and a laptop. The analysis software, SignalVu-PC, is similar to that running on Tektronix’s other spectrum analyzers and it includes an API for those interested in more control over their analysis and experiments.
Tektronix RSA507A 7.5GHz Portable Real Time Spectrum Analyzer Read More »

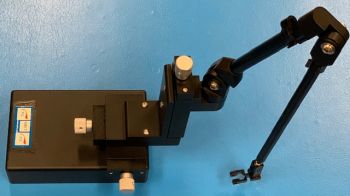

The Equipment Rental Pool has a Browser with a heavy mass base to hold probes of various sizes steady. This kit comes with screw-type trim controls for x, y, and z directions, an articulating arm and eight adapters to hold various probes in place.
Tektronix PPM203B Probe holder/Browser with Heavy Mass Base Read More »

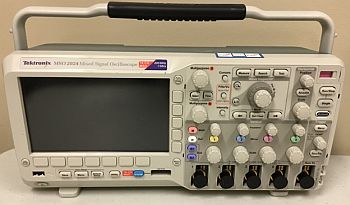

The MSO2024B offers four 200-MHz analog and 16 digital channels for complex design analysis. The Intensity Grading feature displays uncommon anomalies in lighter tones differentiating them from expected waveforms. The “Wave Inspector” feature is composed of separate zoom and pan knobs to navigate the oscilloscope’s one million point record length. Digital ones and zeros are color coded green and blue respectively to ensure that flat traces are distinguishable. White edges indicate multiple logic transitions, suggesting that using a higher sample rate for the next acquisition will unveil more information. CMC’s MSO2042B Oscilloscope has a DPO2COMP application module installed which enables computer analysis and serial triggering via RS-232/422/485/UART buses. Included is a Tektronix P6316 Digital Probe with 8 pF capacitive loading and 101 kΩ input impedance.
Tektronix MSO2024B Mixed Signal Oscilloscope Read More »
The DPO4054B Digital Phosphor Oscilloscope is a 500 MHz four-channel instrument capable of recording up to 20 million points. To navigate through recorded data, installed Wave Inspector software provides zoom and panning features. Waveform intensity grading thickens and brightens frequently captured signals and by contrast, emphasizes dark, thin waveforms representing anomalies. The oscilloscope is shipped with a Tektronix P6139A 10x Passive Probe and 4 Tektronix P2221 200 MHz 1x/10x Passive Probes. NI LabVIEW SignalExpress Tektronix Edition LE is accessible through a USB connection from a PC to the oscilloscope.
Tektronix DPO4054B Digital Phosphor Oscilloscope Read More »
The Tabor 9400 is a general-purpose high voltage amplifier. It has two modes of operation, allowing for versatile measurement applications. The bipolar mode amplifies the input signal and delivers it to the output terminal of the same channel, modifying only its amplitude. The unipolar mode converts the amplifier to a one-input, two-output system.
Tabor 9400 Four-Channel High Voltage Wideband Amplifier Read More »

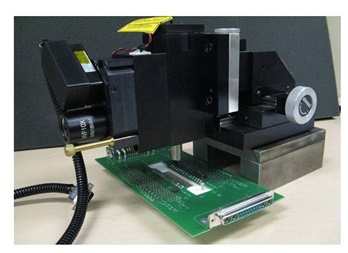

Laser Induced Fluorescence (LIF) is an important analytical technique used in biochemistry. The technique may be used to detect the presence and assess the concentration of many biochemical materials which are selectively tagged with a fluorophore which emits visible radiation under suitable optical excitation. The LIF module offered by CMC consists of a microscope manufactured by Starlight Technical.
Starlight Laser Induced Fluorescence Red Module Read More »
The Stanford Research SR620 is an interval timer and frequency counter capable of measuring signals from 0.001 Hz to 1.3 GHz. The device is equipped with a graphical output that can be displayed on an oscilloscope and interchanged between a histogram, strip chart of mean values, and jitter. Up to one million samples are used to automatically calculate mean, standard deviation, Allan variance, or minimums and maximums. The input impedance is configurable to either 1 MΩ or 50Ω and supports AC or DC coupling. In frequency counter mode, the SR620’s input sensitivity is 60 mV from 1 to 40 MHz. CMC’s SR620 is equipped with Option 01, which uses an ovenized VCXO timebase.
Stanford Research SR620 Universal Time Interval & Frequency Counter Read More »

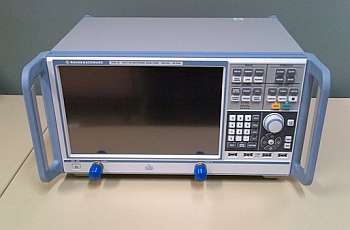

The Rohde and Schwarz ZNB20 is a 2-port Vector Network Analyzer (VNA) with a measurement range of 100 kHz to 20 GHz. Using this instrument, you can perform a wide range of tests, including reflection parameter measurements and network modelling, involving bare die to complete subsystems.
Rohde and Schwarz ZNB20 Vector Network Analyzer Read More »
These Quarter Research manipulators, model 500 XYZ TIM, in the CMC Microsystems’ Test Pool are a pair of positioners used for probing bare die, MEMs and microfluidics devices.
Quater Manipulator, Model 500 XYZ (TIM Version) Read More »
The Ocean Optics USB4000 VIS-NIR ES is a miniature plug-and-play optical spectrometer suitable for laboratory benchtop analysis and characterization of fluidic and gaseous media. This instrument performs automated absorption and transmission testing across a wavelength range extending from visible to near IR wavelengths. It is equipped with a high-power broadband optical source (top left in the photo below) and standard optical fibre-based fixture to focus and collect light into a standard 3-ml sample holder (cuvette system, at bottom right). Its small form factor and standard USB interface make it easy to incorporate into your lab’s characterization set-up. You may use Ocean Optics’ LabView-based software development tools to enhance or adapt the spectrometer’s control and analysis user interface to your own system prototyping needs. The USB4000 is fully compatible with the CMC Microsystems Integration Platform (MIP).
Ocean Optics USB4000 VIS-NIR Optical Spectrometer Read More »

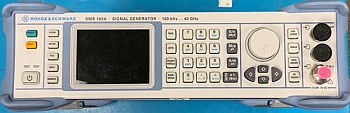

The Rohde & Schwarz SMB100A is a radio frequency generator with a range of 100 kHz to 40 GHz in a high-output power configuration capable of providing up to 16 dBm.
Rohde & Schwarz SMB 100A 40GHz Signal Generator Read More »
This amplifier provides up to 16 W saturated output power over more than an octave up to 4 GHz. The amplifier is equipped with an automatic shutdown that is triggered if temperatures exceed +85°C. To avoid damage in the presence of an open or short circuit, the amplifier includes protective internal circuitry. The device is useful for a variety of applications from communications to test and measurement systems.
Mini Circuits High Power Amplifier ZHL-16W-43-S (16 W, 1.8 to 4 GHz) Read More »

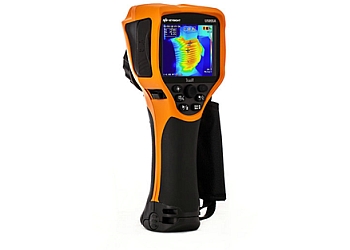

The U5855A is ideal for predictive maintenance activities, from hot spot detection to thermal profiling. With this thermal imager, you get 320×240 Fine Resolution. Ability to magnify the thermal image of a far‑away object by 4 times to reveal finer details and quickly spot problems. Also, take thermal images of close-fit or minute components from as close as 10 cm away clearly and accurately.
The U5855A also comes with a variety of measurement and analysis tools to help you monitor temperature over time, do min and max temperature tracking and more so that you can easily obtain heat patterns, dissipation and etc. The U5855A comes with a built-in quick start tutorial to help you get familiar with thermal imager quickly.
What’s more, with the complimentary TrueIR Analysis and Reporting Tool, you can easily import, analyze and edit thermal images and quickly generate reports using ready templates. You can also display thermal images, visual images or thermal-visual images side-by-side for further analysis.
Keysight U5855A TrueIR Thermal Imager – for temperature measurement up to 350°C Read More »
The E4990A Impedance Analyzer has a frequency range of 20 Hz to 120 MHz. The E4990A provides an industry best 0.045% (typical) basic accuracy over a wide impedance range, with a 40 V built-in DC bias source. The equivalent circuit analysis function supports seven different multi-parameter models and helps you to simulate your own equivalent parameter values of components.
The E4990A supports a wide variety of test accessories that designed to make measurements simple and reliable. Included fixtures are listed below.
Keysight E4990A Impedance Analyzer – for frequency range 20 Hz to 120 MHz Read More »
The Keysight B2902A is a two-channel SMU capable of performing precise IV measurements and acting as an arbitrary waveform generator. The GUI offers four views: single channel, dual channel, graph, and roll (I-t or V-t curves). The B2902A supports four-quadrant measurements and standard built-in sweep procedures (linear, logarithmic, single and double sweep functions) DC or pulsed.
Keysight B2902A Precision Source Measurement Unit Read More »
